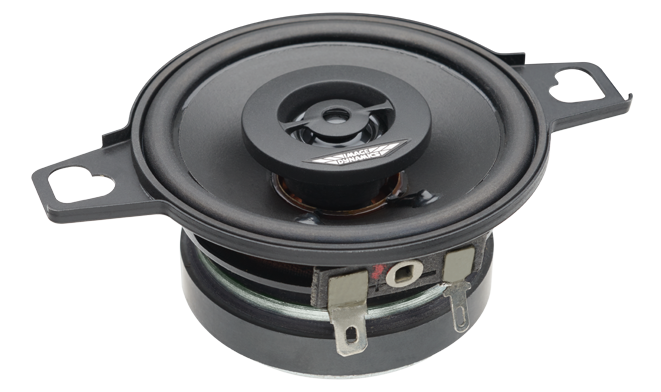

ID275 Full Range Coaxials
ID Series Coaxial 2.75" with 16mm Mylar Dome Tweeter 90W MAX RMS
Our newest addition to the ever popular ID Series line of full range coaxials, the ID275 provides a rich and full sound in its small 2.75" frame. The coaxial comes with its own crossover network provided in the package to crossover the drivers from 850Hz - 20kHz for a more controlled sound which will also allow more power handling.
ID Series Coaxial Speakers are an affordable solution for high performance coaxial speakers at a great value. With their ultra high efficiency the ID Series Coaxial provides incredible detail at even high output levels while producing rich well–balanced sound overall.
Combining high efficiency and power handling the ID Series Coaxial provides excellent output when paired with a high powered amplifier or even simply an aftermarket head unit making the ID Series a perfect fit for every application.
The ID Series Coaxials are available in sizes 2.75",4", 5", 6", 6.5", 5x7" and 6x9"
Specifications
- Nominal Impedance: 4Ω
- Sensitivity (1W / 1M): 83db
- Dimensions (in Inches): 2.75"
- Mounting Depth: 1.3"
- Size: 2.75"
- Frequency Response: 230Hz-22kHz
- Power Handling (RMS/Peak): 30W - 90W RMS
